CABLES

Ravin Cables

Built for Demands, Designed for Durability

Ravin Group houses the most comprehensive range of cables including Low Voltage, Medium Voltage,High Voltage, Aerial Bunched, Fire Survival, Specialty and Extra High Voltage Cables. All cables comply with international and
relevant local standards.

Low Voltage Cables

Ravin manufactures Low voltage cables used for primary distribution networks and power distribution.

  • Specification

    Cables as per BIS/ BS/ IEC/ or any other international specification

  • Sheathing

    PVC/HR-PVC/FR & FRLS PVC/LSZH

  • Voltage Grade

    650/1100 V

  • Core

    Single to 100

  • Cross Sectional Area

    1.5 sq. mm to 1000 sq. mm

  • Conductor

    Aluminum / Copper

  • Insulation

    XLPE / PVC

  • Armour

    Aluminum / Galvanized Steel

IMG_0124
IMG_0067
30
38
IMG_0062
57
IMG_0123

Medium Voltage Cables

Ravin manufactures Medium voltage cables used for primary distribution networks and power distribution.

  • Specification

    Cables as per BIS/ BS/ IEC/ or any other international specification

  • Sheathing

    PVC/HR-PVC/FR & FRLS PVC/LSZH

  • Voltage Grade

    3.3 kV to 33 kV

  • Core

    Single to 3 core

  • Cross Sectional Area

    25 sq. mm to 1000 sq. mm

  • Conductor

    Aluminum / Copper

  • Insulation

    XLPE

  • Armour

    Aluminum / Galvanized Steel

IMG_0130
IMG_0120
IMG_0119
IMG_0117
31 (1)
36_-_Copy (1)
39 (4)
IMG_0116
IMG_0173

High Voltage Cables

Ravin manufactures High Voltage cables which can be used for bulk transmission of power. These cables are triple layered XLPE insulated, dry cured and cool manufactured as per national and international standards for a voltage grade of 150 kV

  • Specification

    Cables as per BIS/ BS/ IEC/ or any other international specification

  • Sheathing

    HR-PVC or HDPE with extruded layer of semi conducting material

  • Cross Sectional Area

    95 sq. mm to 2000 sq. mm

  • Conductor

    Aluminum / Copper

  • Insulation

    Super clean XLPE

  • Armour

    Aluminum wire

  • Voltage Grade

    66 kV to 150 kV

  • Metallic Sheath

    Aluminum/ Lead/Composite of copper screen +Lead

hvcable3
22 (1)
IMG_0011

Rubber Cables

Ravin manufactures Rubber Cables which can be used in a variety of applications ranging from mining , cranes, railways, ship wiring, oil & gas, welding cable and material handling applications. They are also used in the renewable segments such as the wind & solar segments.

  • Specification

    Cables as per BIS/ BS/ IEC/ or any other international specification

  • Sheathing

    CSP/ PCP/EVA/TRS

  • Insulation

    EPR/VIR/EVA/Silicone

  • Conductor

    Plain or tinned copper

  • Insulation

    XLPE

  • Armour

    Aluminum / Galvanized Steel

rcable1
rcable2
rcable3
rcable4
rcable5
rcable6

AB Cables

Aerial bunched cables have various advantages such as:

  • Superior Reliability
  • Eco Friendly
  • Low Maintenance Cost
  • Ease of Augmentation
  • Lower Impedance
  • Corrosion Resistance

  • Grades

    1.1 kV to 33kV

  • Sheathing

    HR-PVC /HDPE for HT AB cables

  • Cross Sectional Area

    10 to 240 sq. mm or as per customer specifications

  • Conductor

    Aluminium or as per customer specifications

  • Insulation

    XLPE

  • Core

    1 to 5 or as per customer specifications

  • Specification

    Cables as per BIS/ BS/ IEC/ or any other international specification

03
20
47
ab_cable

Fire Survival Cables

  • Specification

    As per BS 7846 or any other international specifications

  • Sheathing

    LSZH, Zero Halogen – no corrosive gas emission.

  • Cross Sectional Area

    1.5 sq. mm to 300 sq. mm

  • Conductor

    Copper

  • Insulation

    XLPE or equivalent

  • Armour

    Galvanized Steel

  • Core

    Multi-Core

IMG_0169
IMG_0149
IMG_0148
rcable5
IMG_0168
rcable4

Speciality Cables

  • To client specifications

  • Heat, oil, flame retardant cables

  • LSZH with hydro carbon resistance cables

  • 5 kV airport lighting cables, runway signalling cables

  • Screened / unscreened instrumentation cables

IMG_0169
IMG_0148
IMG_0166
rcable5
IMG_0168
rcable4

Ravin Cables

Built for Demands, Designed for Durability

Ravin Group houses the most comprehensive range of cables including Low Voltage, Medium Voltage,High Voltage, Aerial Bunched, Fire Survival, Specialty and Extra High Voltage Cables. All cables comply with international and
relevant local standards.

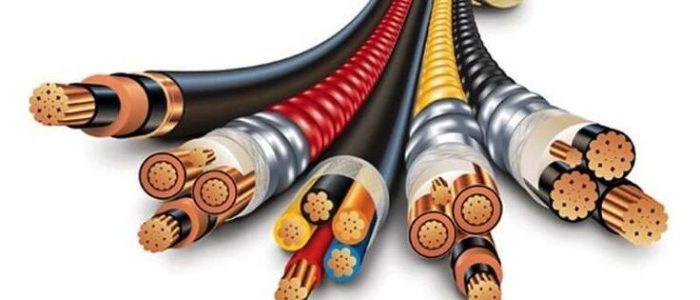

Neutral Screen Cables

Ravin’s Cable Portfolio

Built for Demands, Designed for Durability

39 (3)

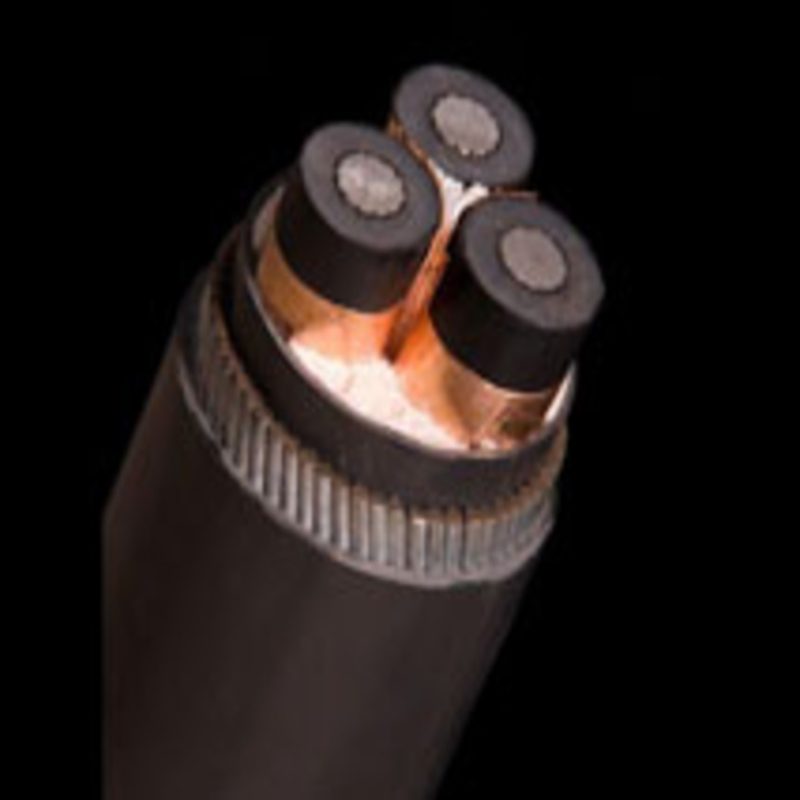

Medium Voltage Cables
